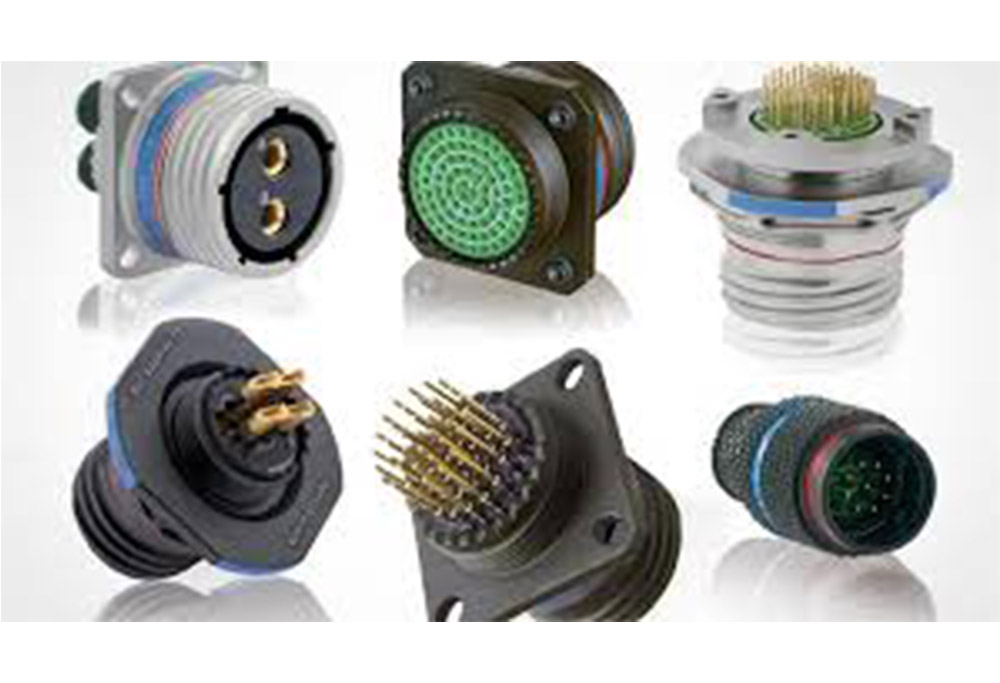

D38999 Series III are the standard circular connector for use in harsh military and aerospace environments. High density layouts with up to 187 data connections and power contacts rated up to 23A. They feature a triple-start coupling with anti-decoupling ratchet for high vibration applications, grounded plug for superior EMI shielding and 100% scoop-proof contacts for blind-mate coupling. They are qualified to stringent MIL-DTL-38999 Series III specifications.
Backshell: A backshell is a mechanical device threaded into the rear of an electrical connector. The more popular backshells are strain relief, cable clamps and adaptors. Backshells protect the electrical connector and the cable link from physical stress (strain, shock, vibration) as well as electromagnetic interference that can occur when lightning strikes an aircraft.

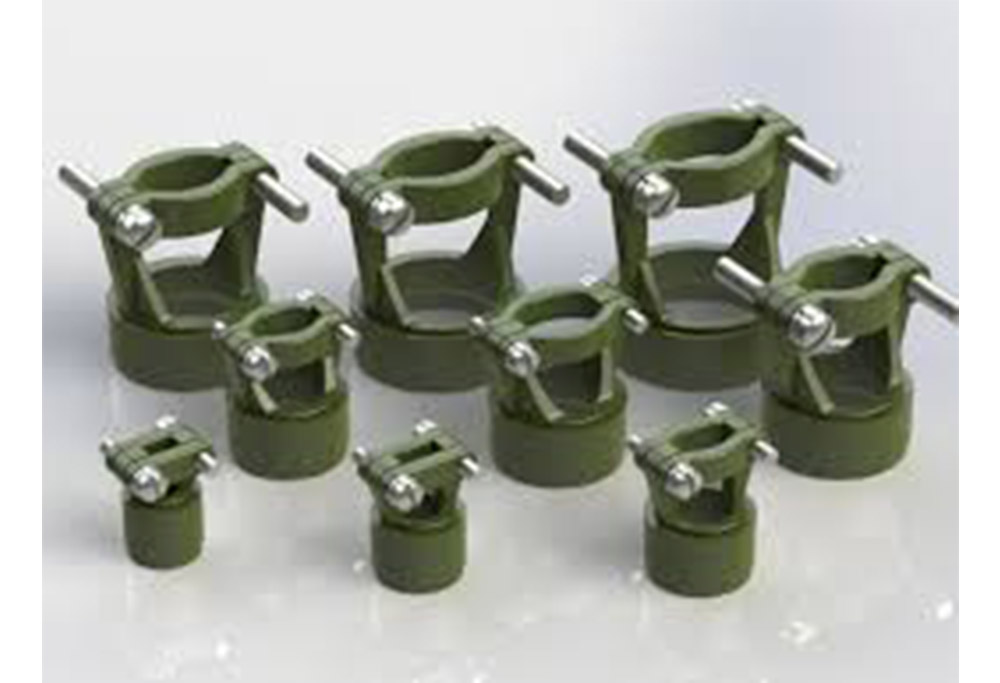

Backshell Clamps tidy-up the cable after termination and provide good strain relief at the termination area. The clamps are a cost-effective cable holding option when environmental protection is not a concern and weight savings is a major consideration. Backshell Clamps are available in black zinc nickel, adding to the existing finishes in olive drab gray cadmium, tin, or nickel with a variety of shell sizes 11 through 48. Available in environmental and non-environmental options, as well as EMI / RFI. Backshell Clamps meet MIL-DTL-38999, MIL-DTL-26482 Series II, MIL-DTL-83723 Series I and II, MIL-DTL-24308, and MIL-DTL-83513.

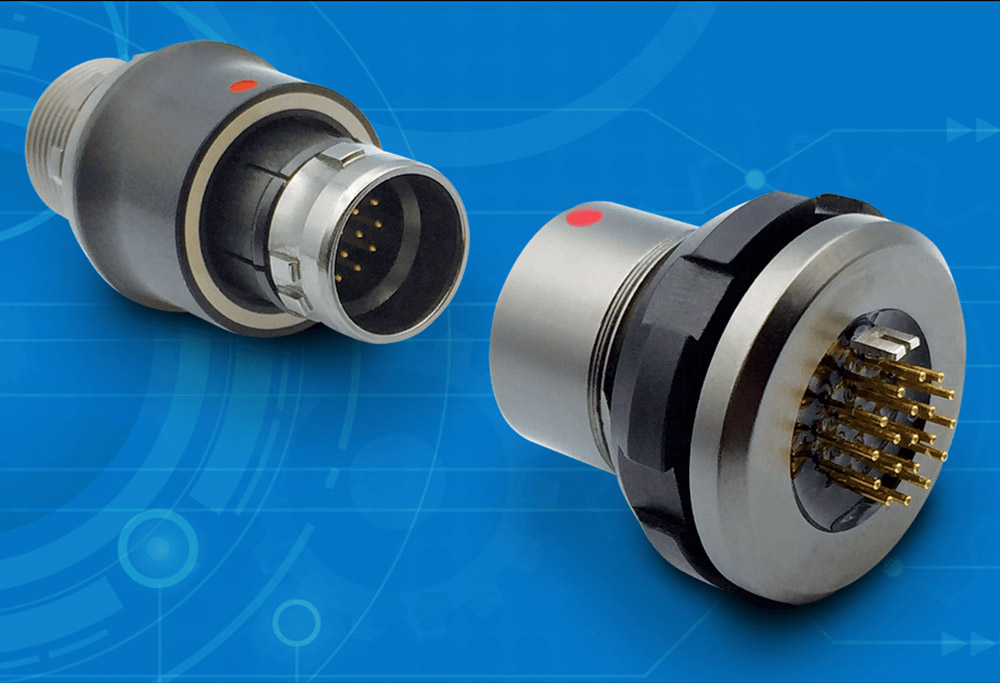

Push Pull Connectors: Push Pull connectors are designed for severe environmental areas in aeronautic, military and space applications such as rocket launch pads. The series connectors are also ideal for rack & panel equipments. Thanks to their visual and sensitive push-pull locking system, the connectors are highly reliable for launch pad applications. The wide range of inserts and large range of shell types and accessories with multiple surface-finishing options makes integrated solutions for custom designs possible.

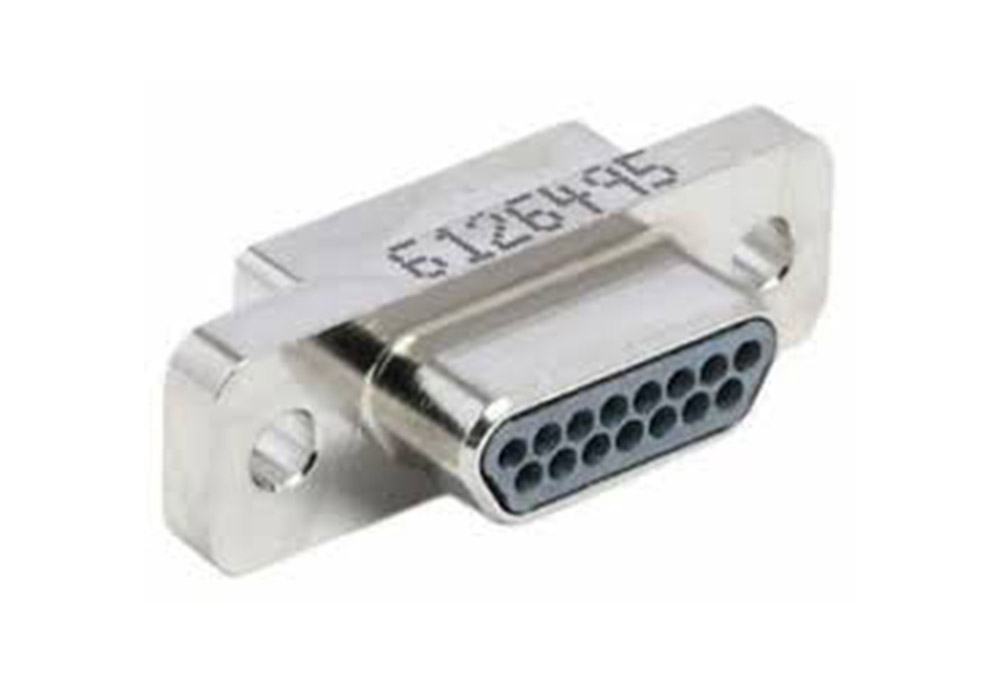

Micro D Connectors: Micro D connectors are designed for mission-critical applications where high-density and high-reliability is a necessity. Ideally suited for demanding applications, the Series connector product has been utilized industry wide for over 30 years in various applications ranging from Avionics, Civil Craft, Deep-Sea Exploration, Geophysical, Helicopter, Medical Devices, Navigation, Radar, Communications, Engine Control Systems and more. The field proven Micro D connector line has the largest array of termination, configuration, mounting & hardware options available in the marketplace today. With its rugged & reliable four points of contact for trusted connections every time, the Micro D is available in I/O, straight, right-angle & SMT board-mount models.
NOTE:- OEM Part numbers & Images are used for representation purposes only.
